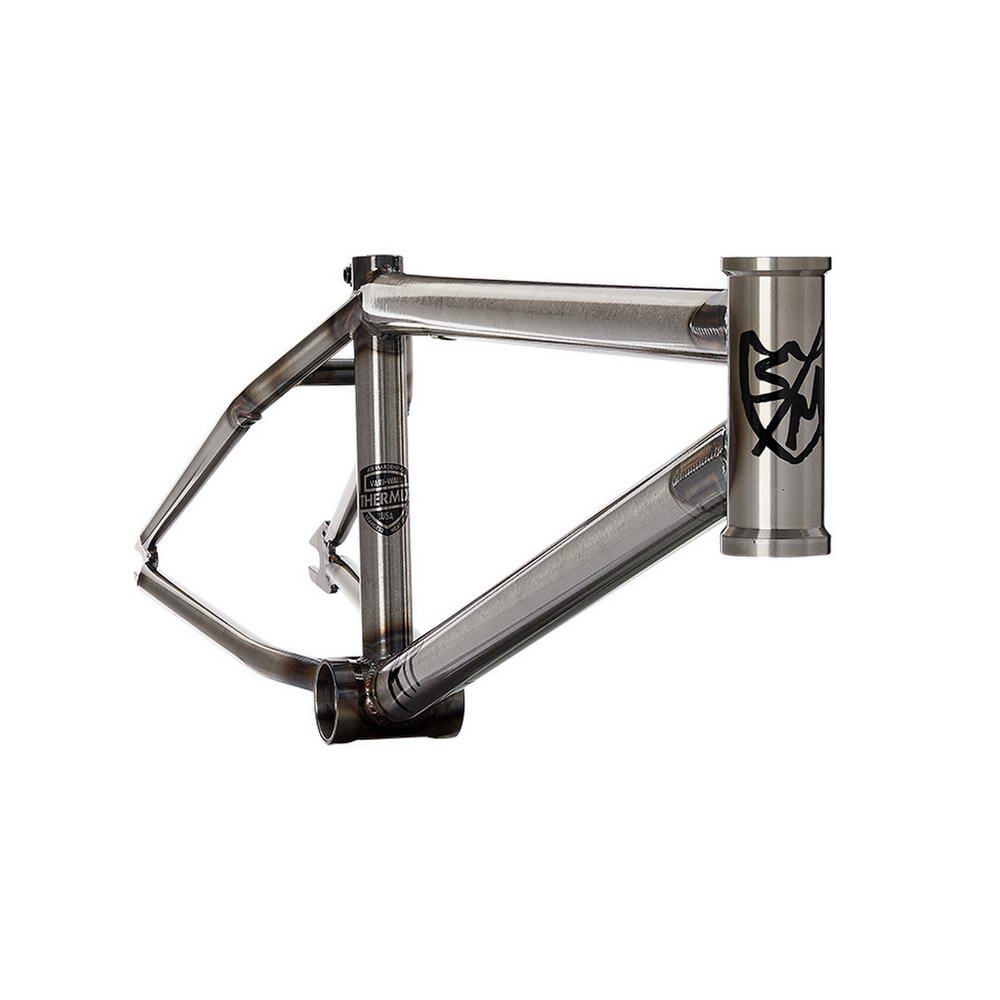

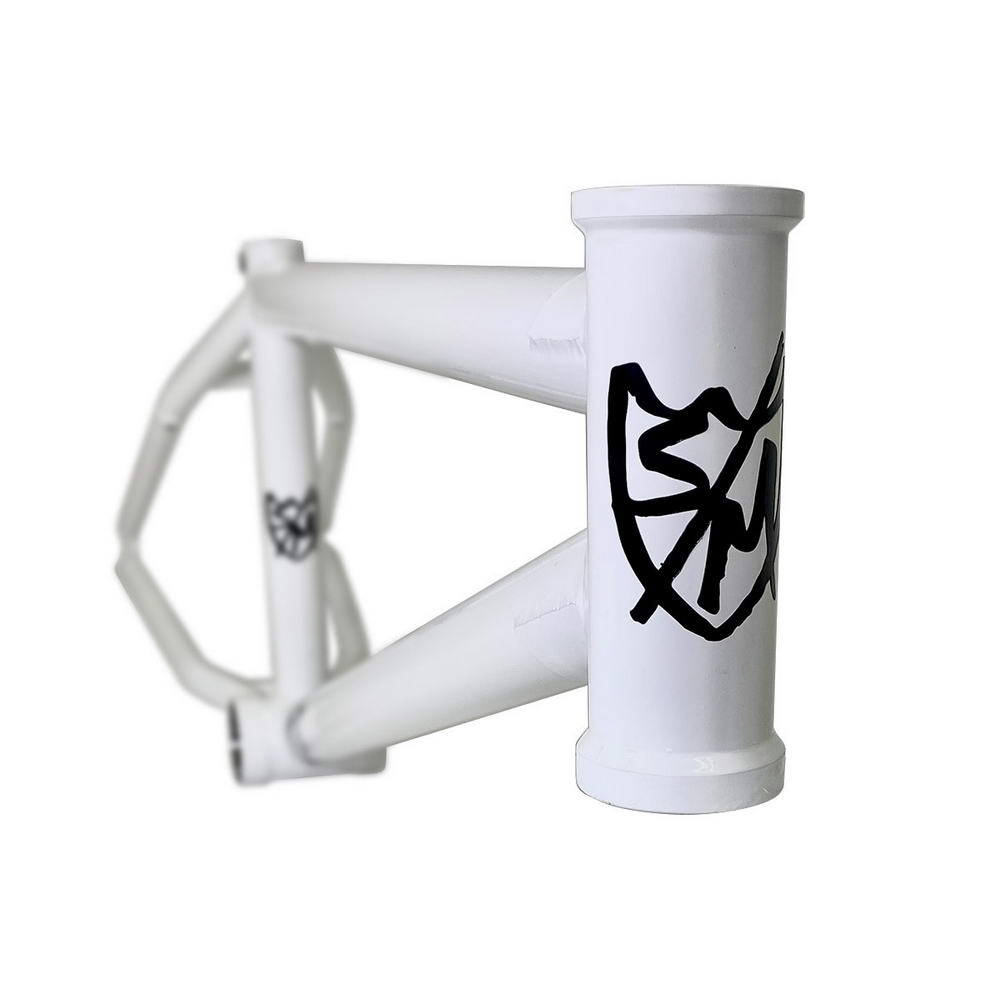

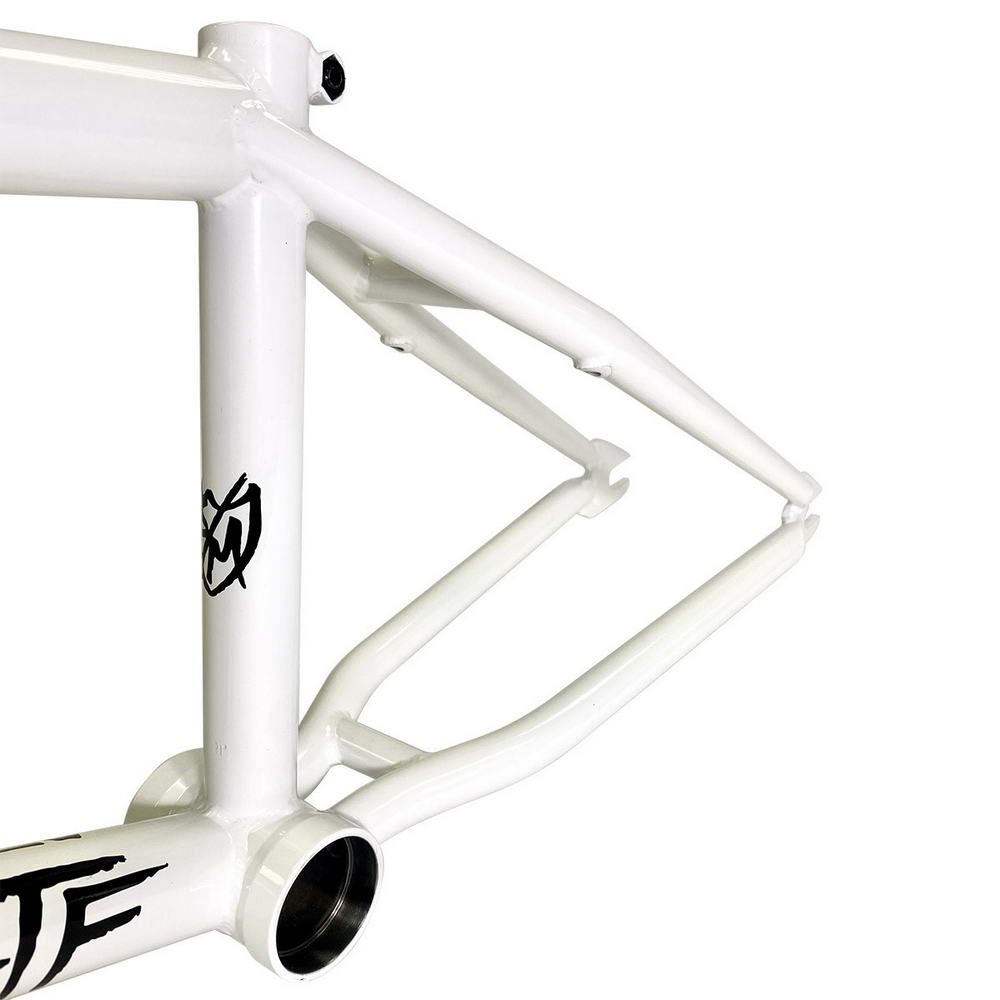

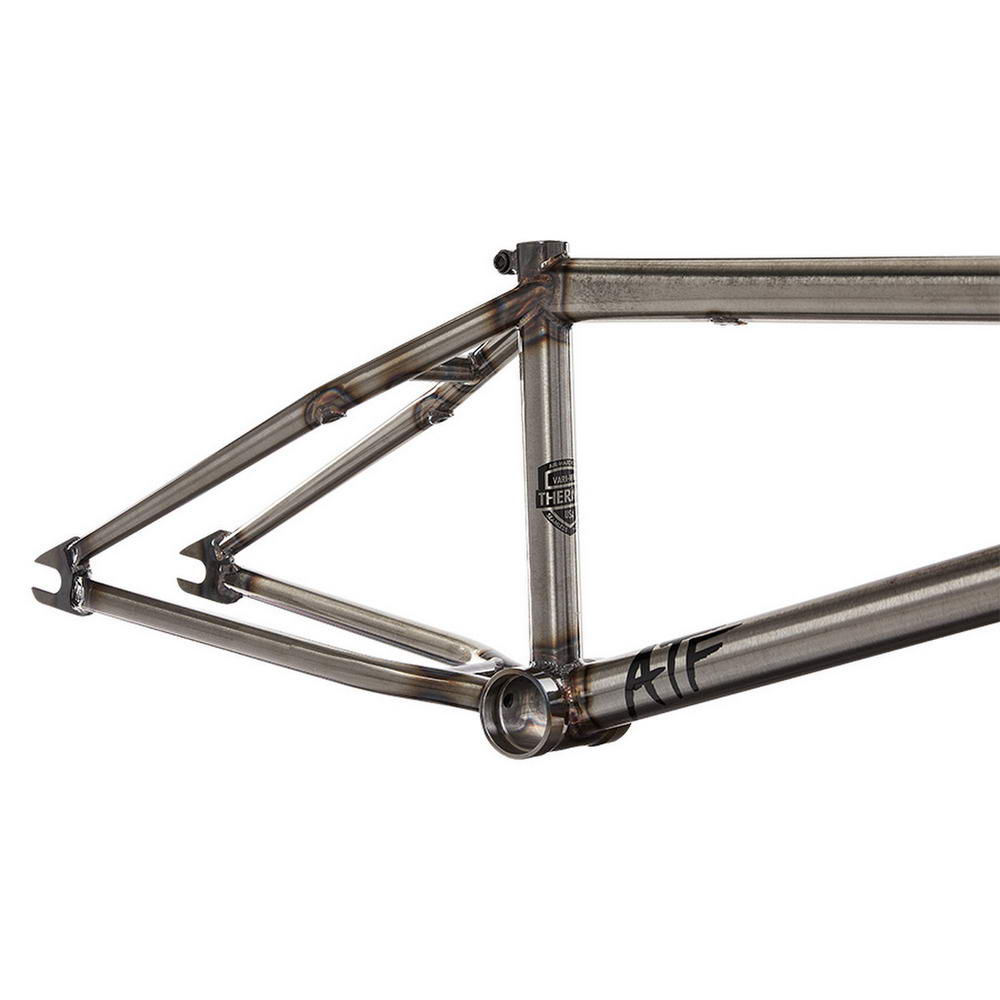

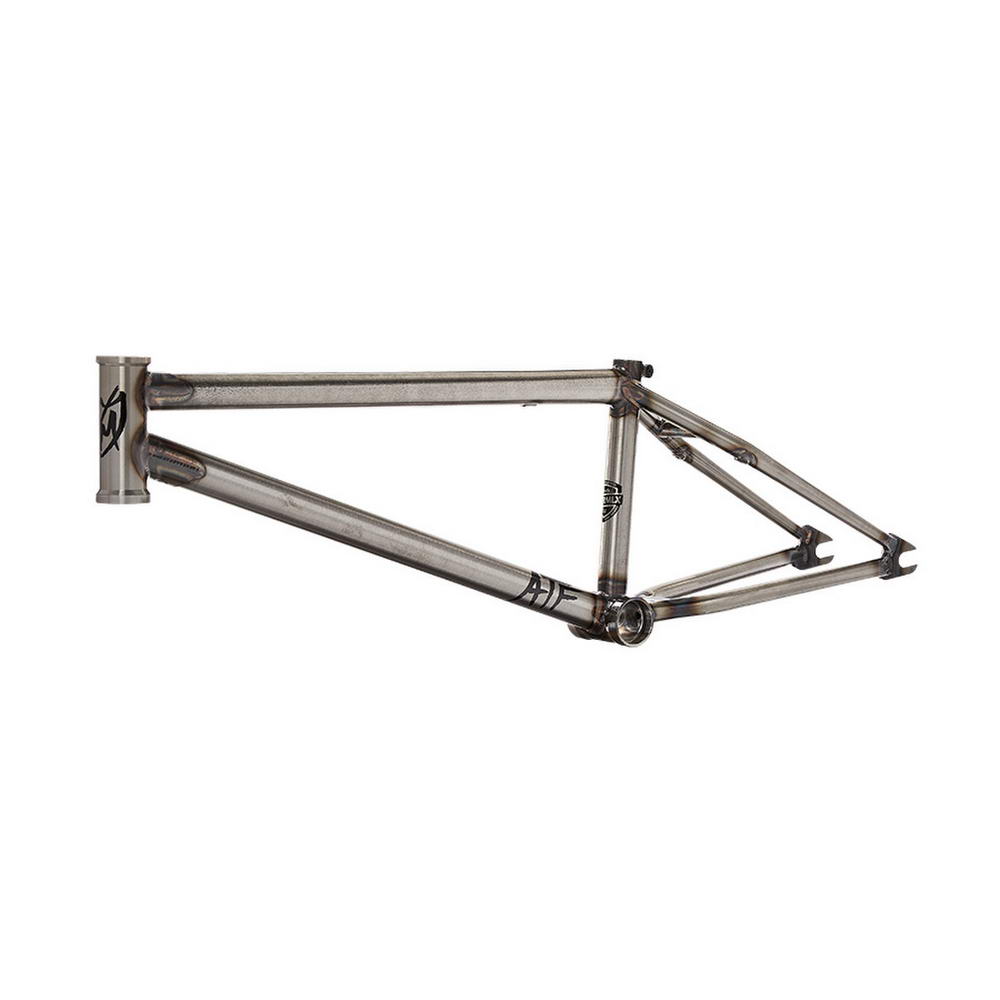

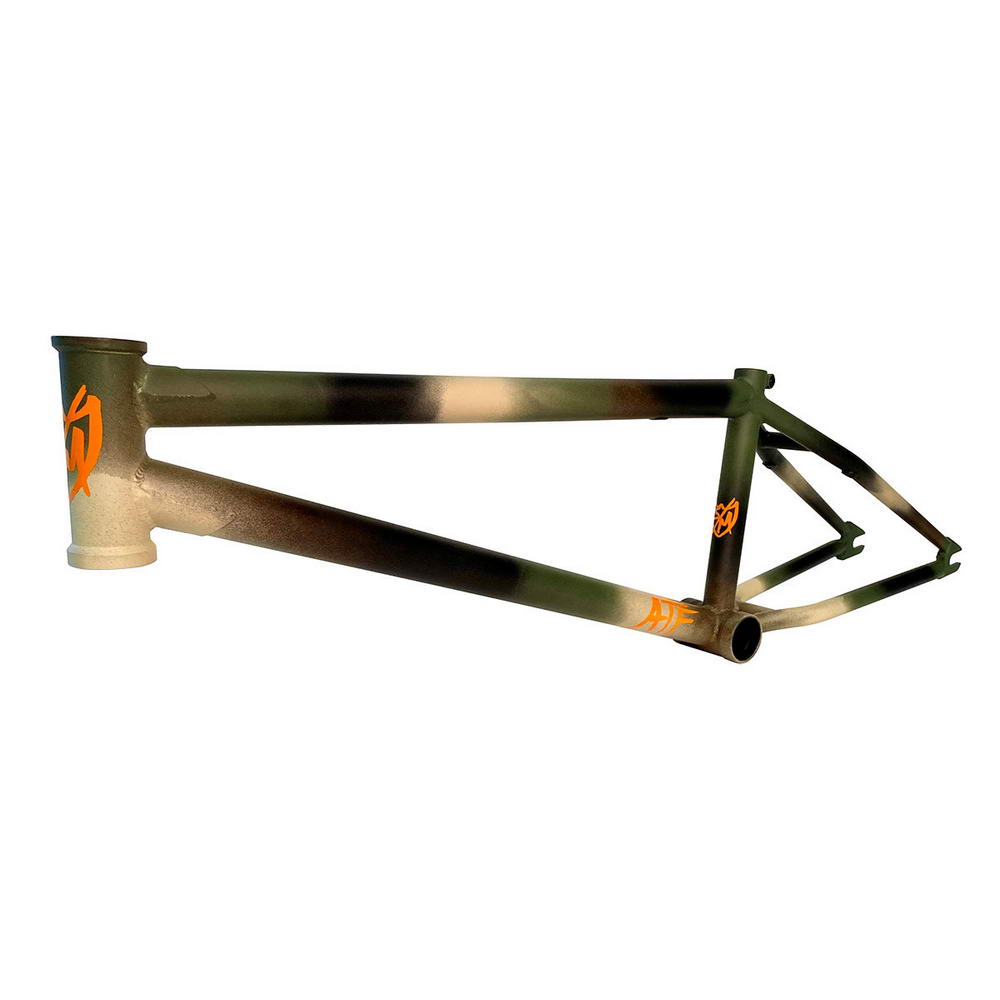

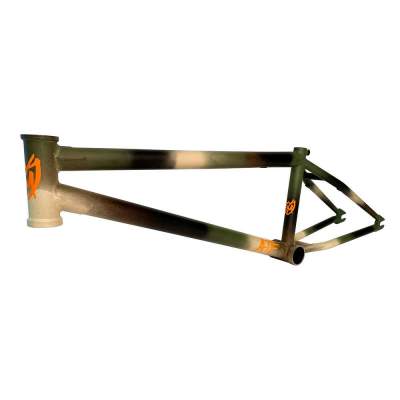

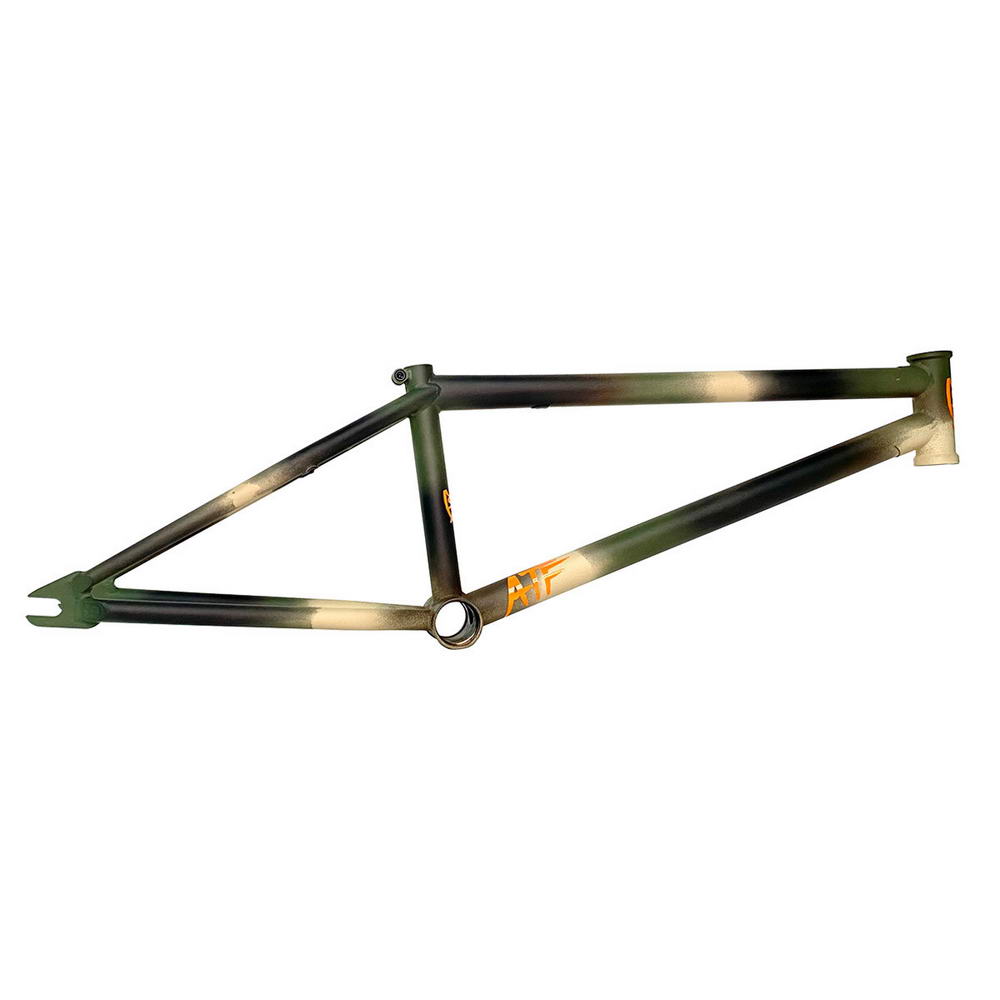

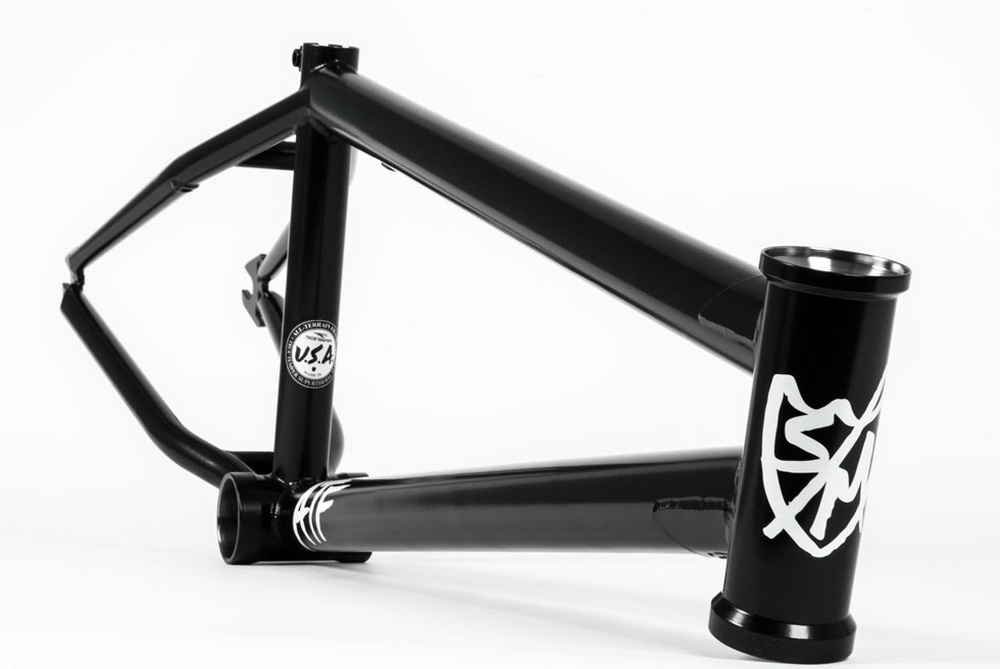

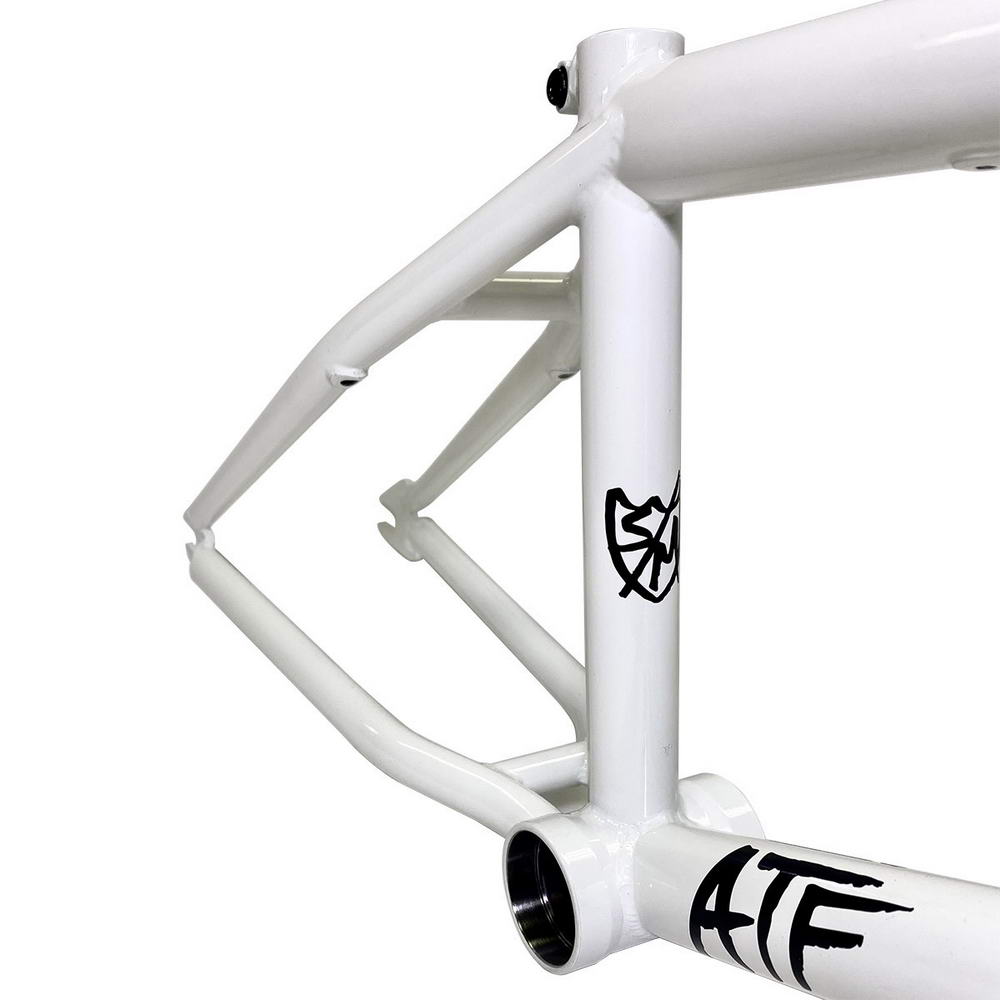

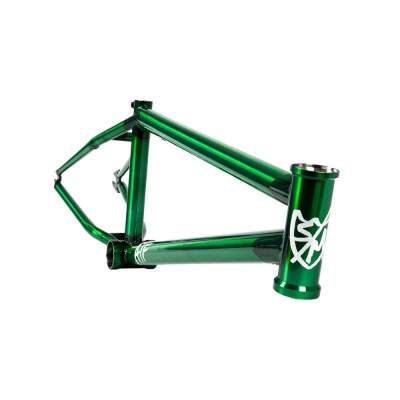

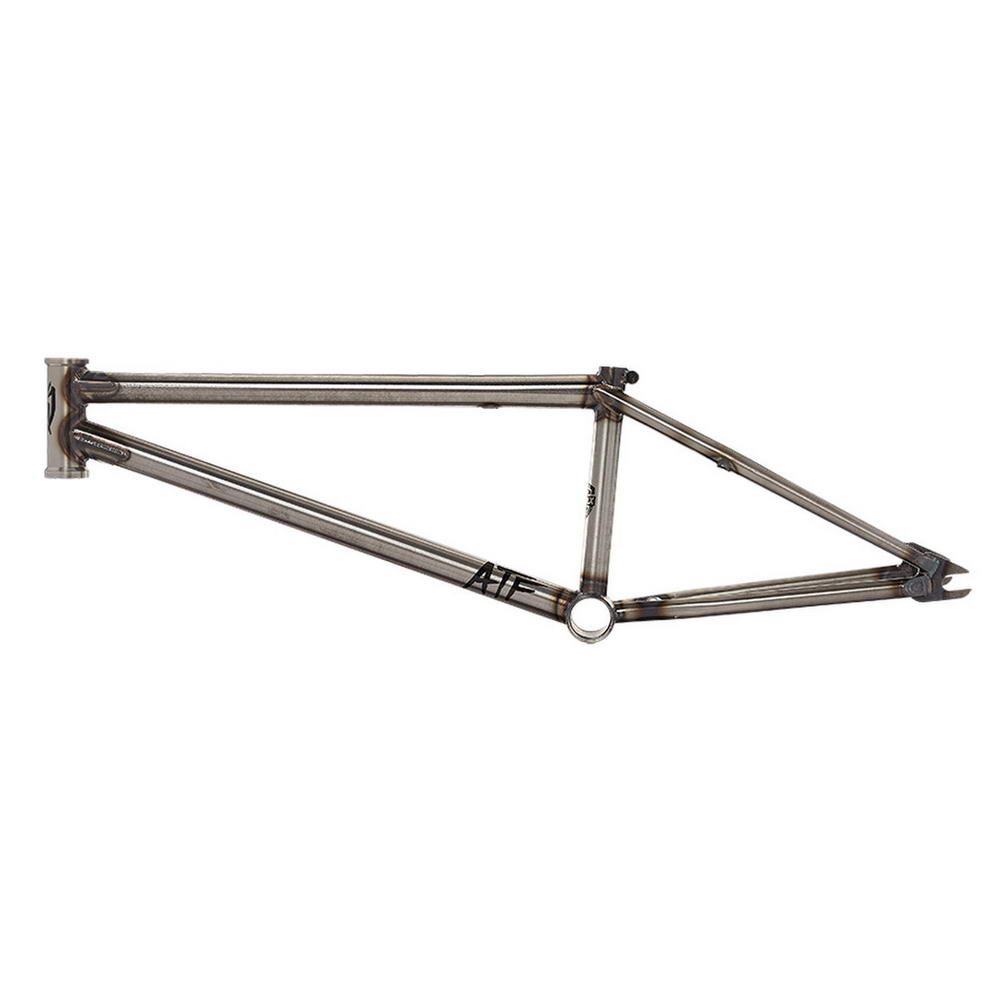

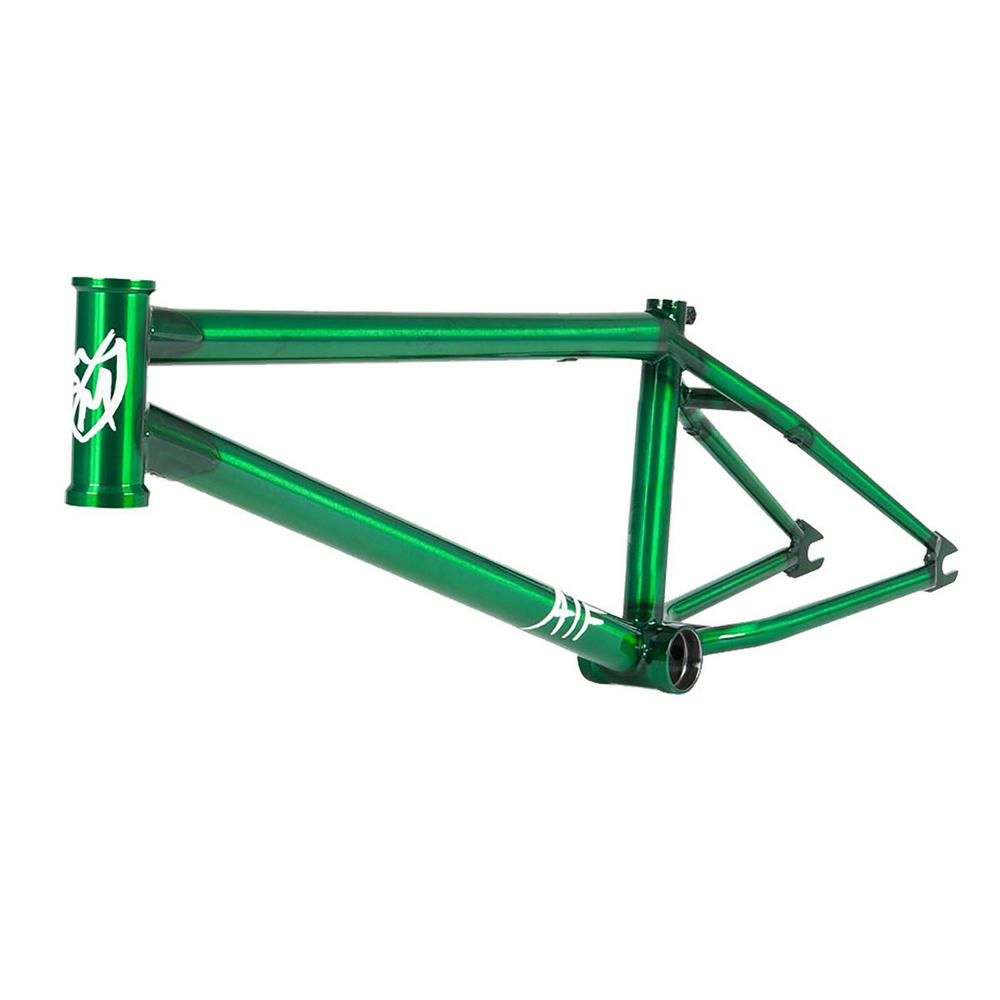

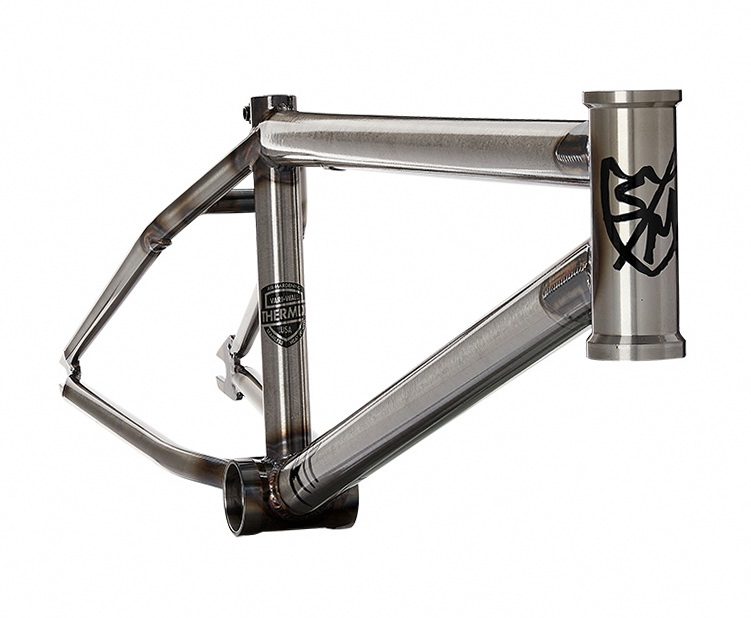

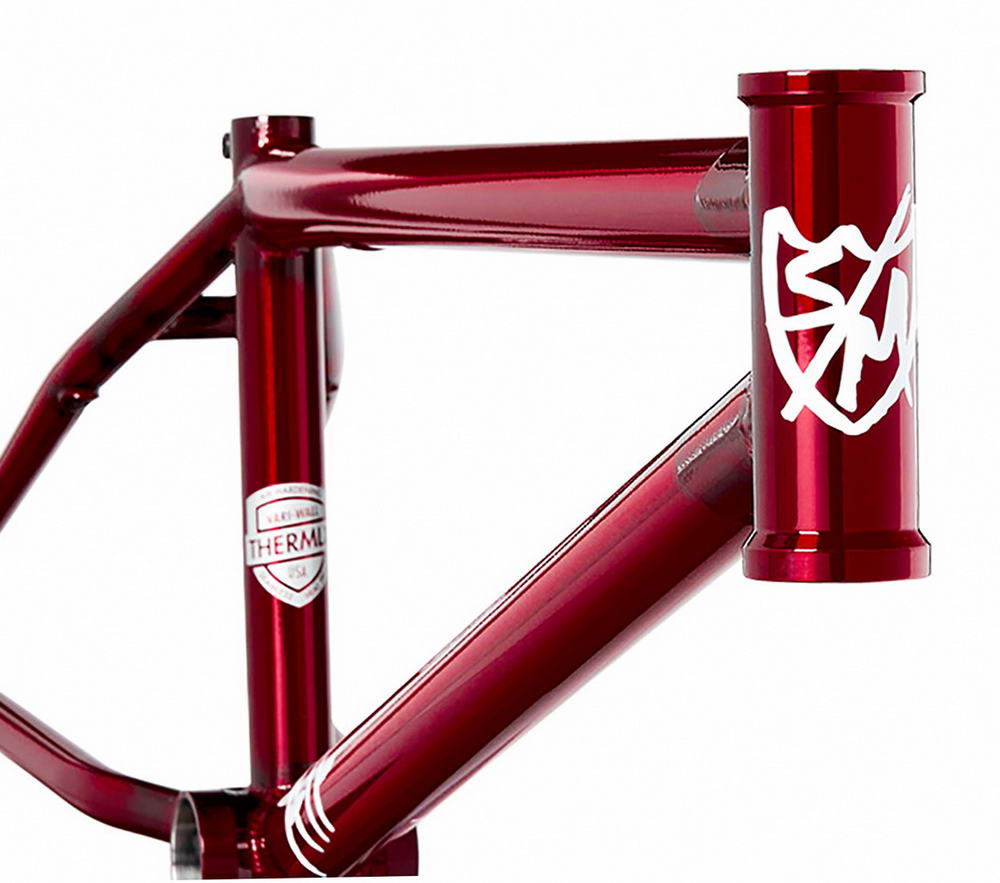

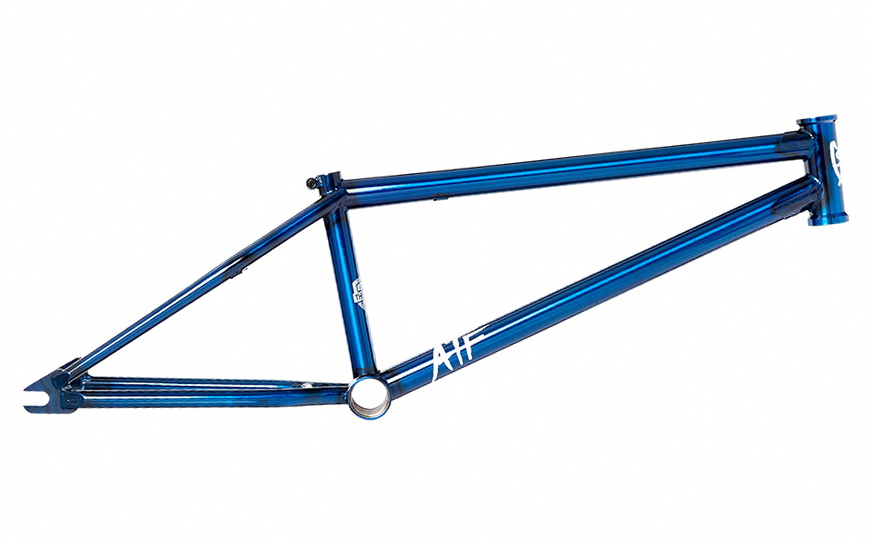

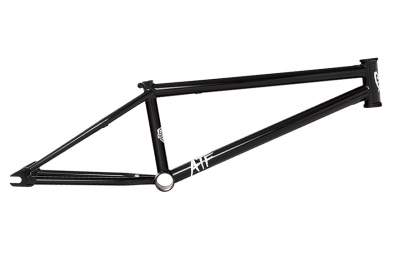

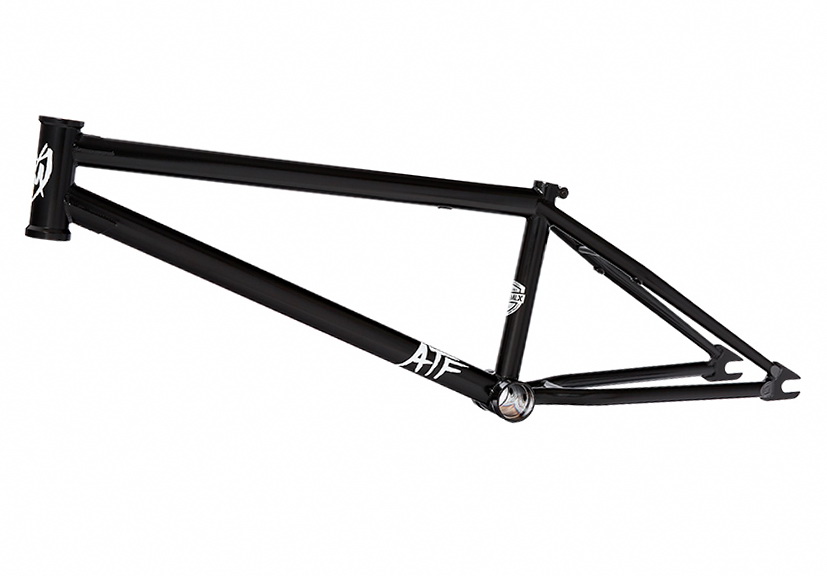

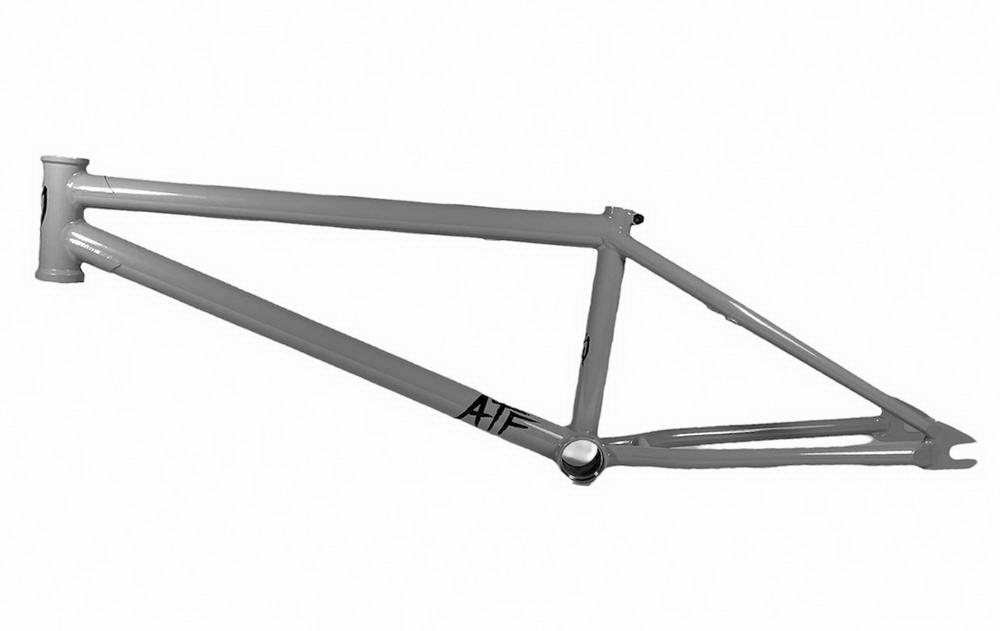

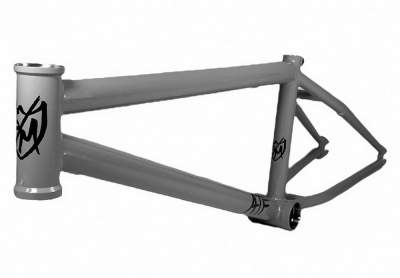

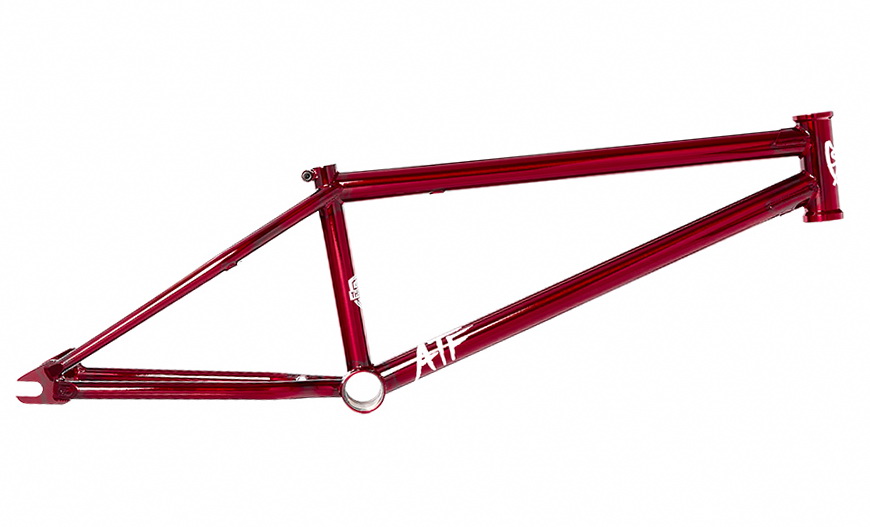

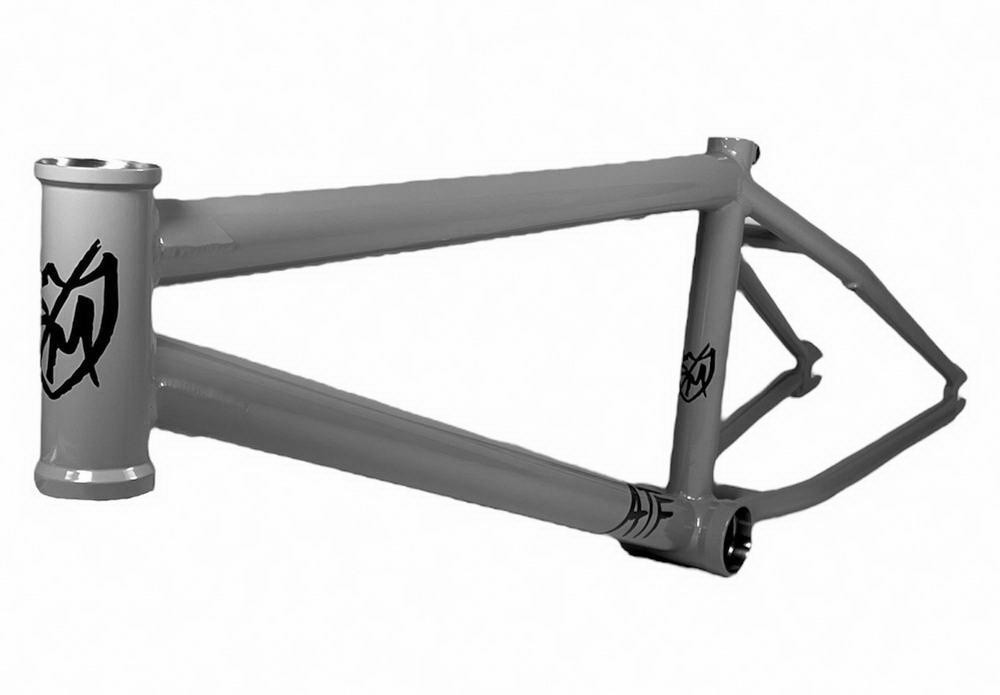

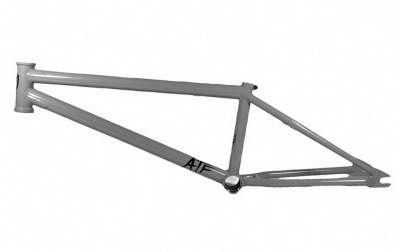

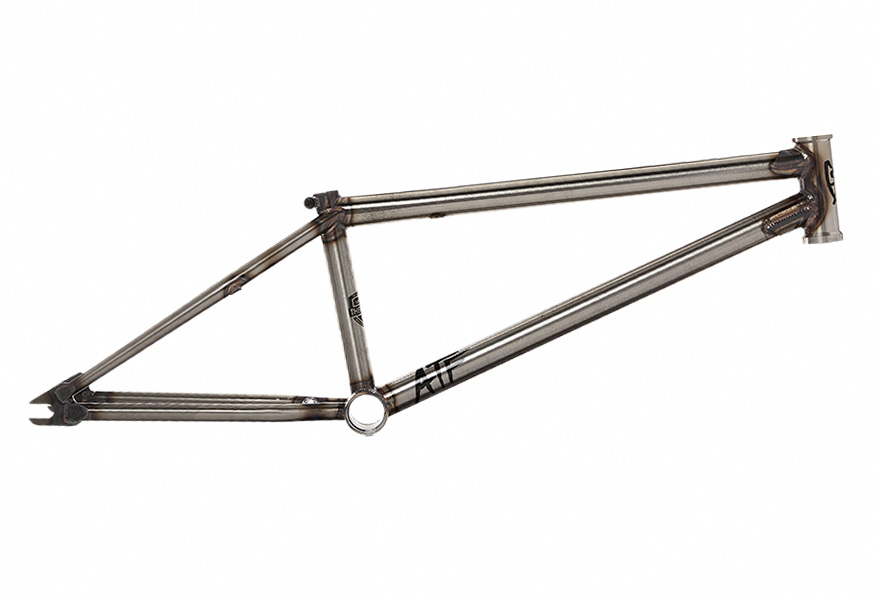

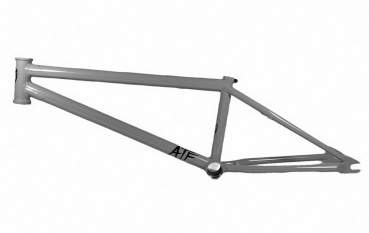

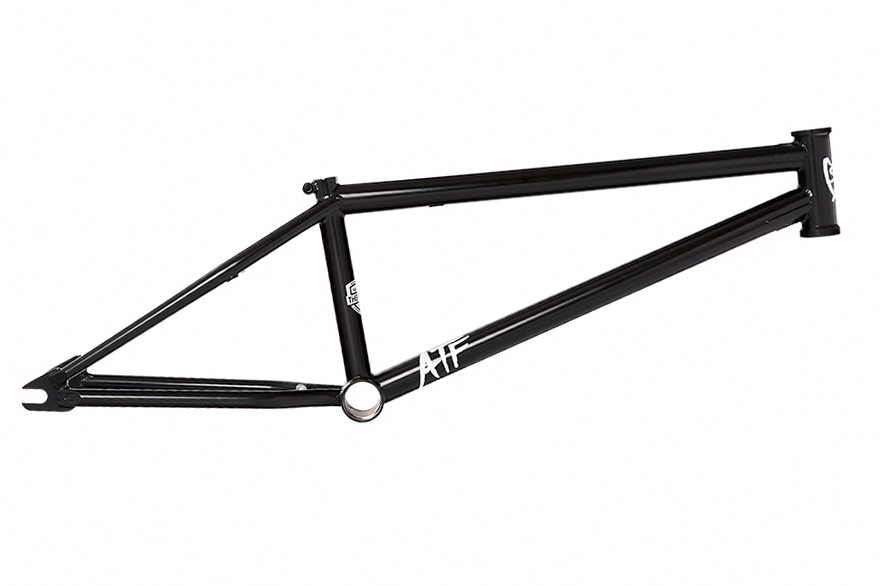

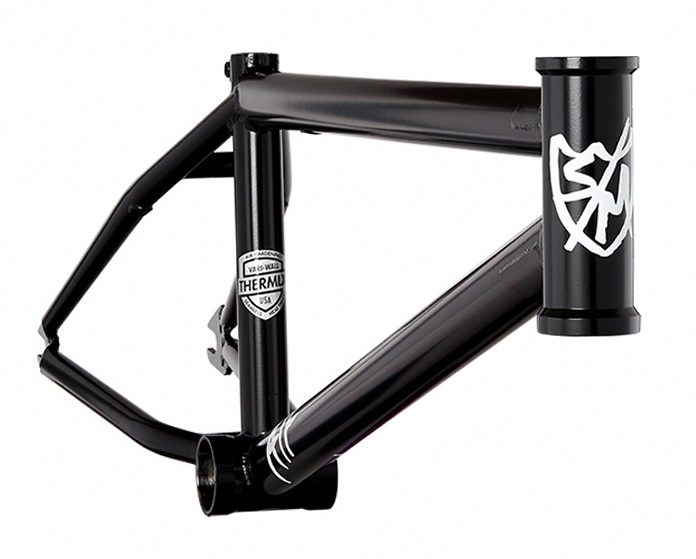

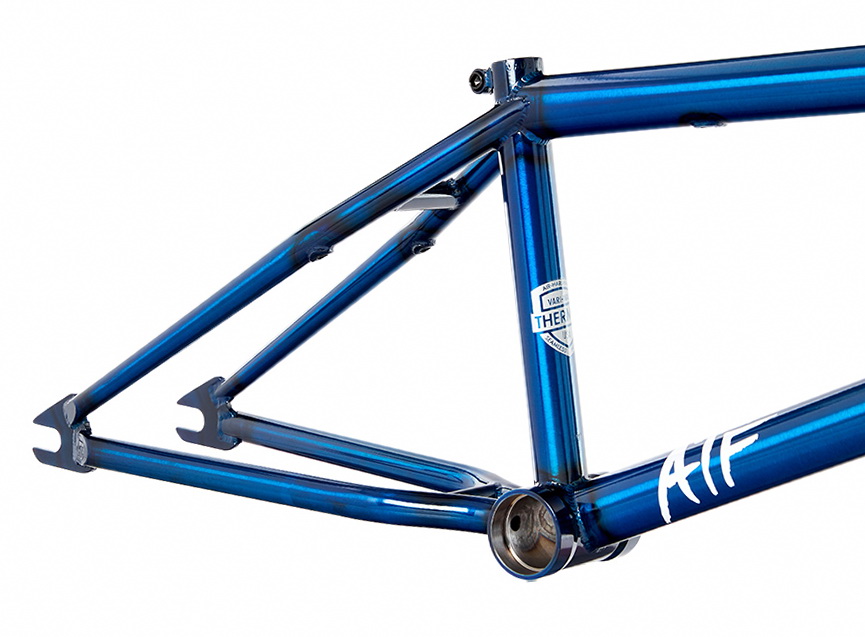

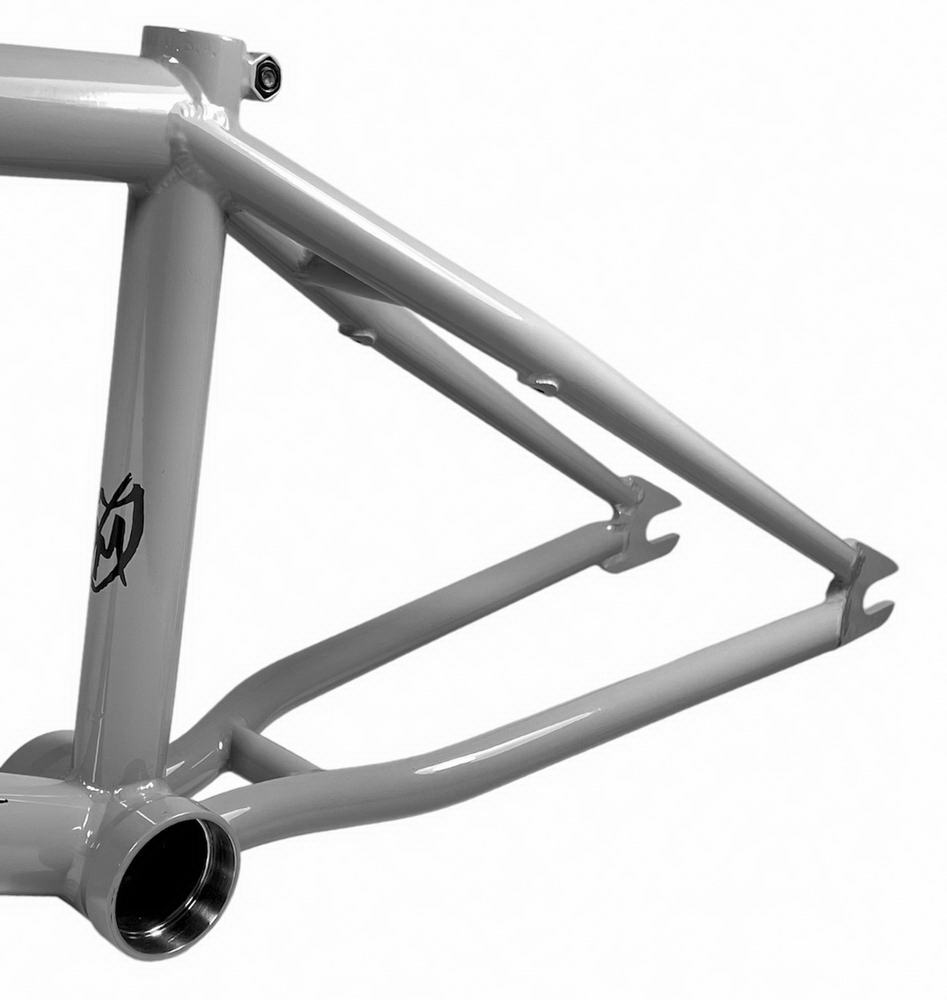

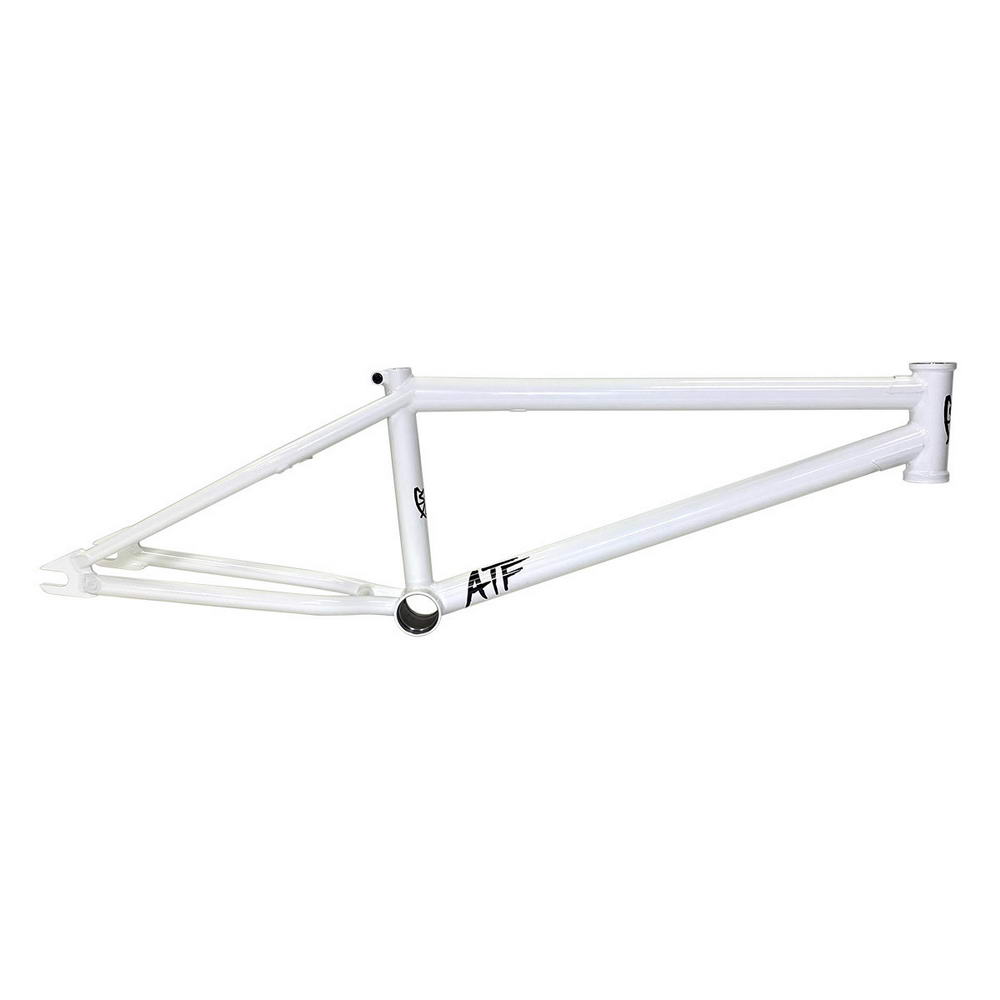

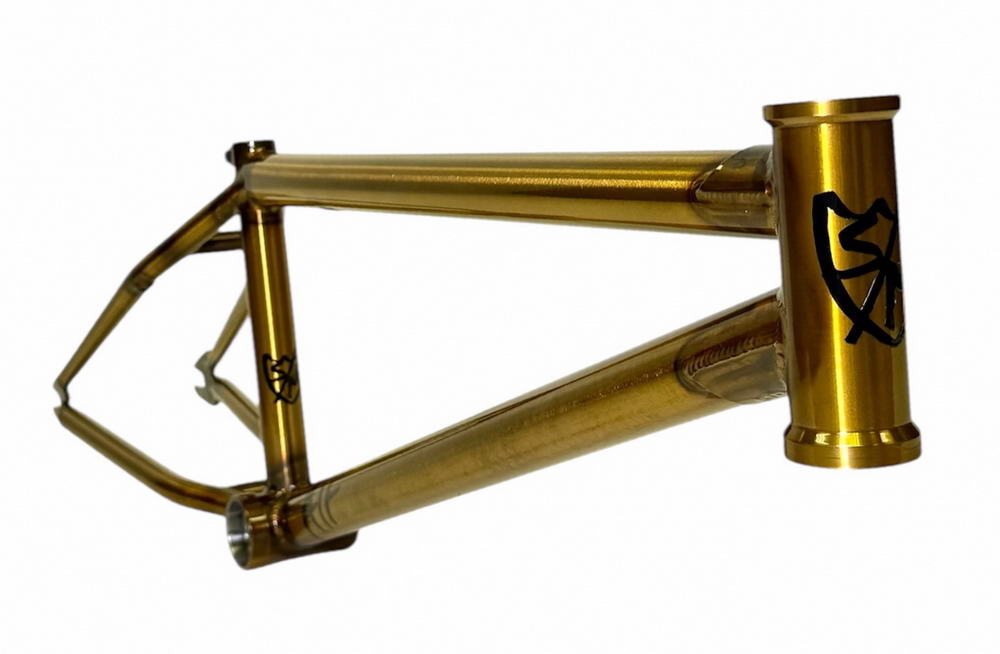

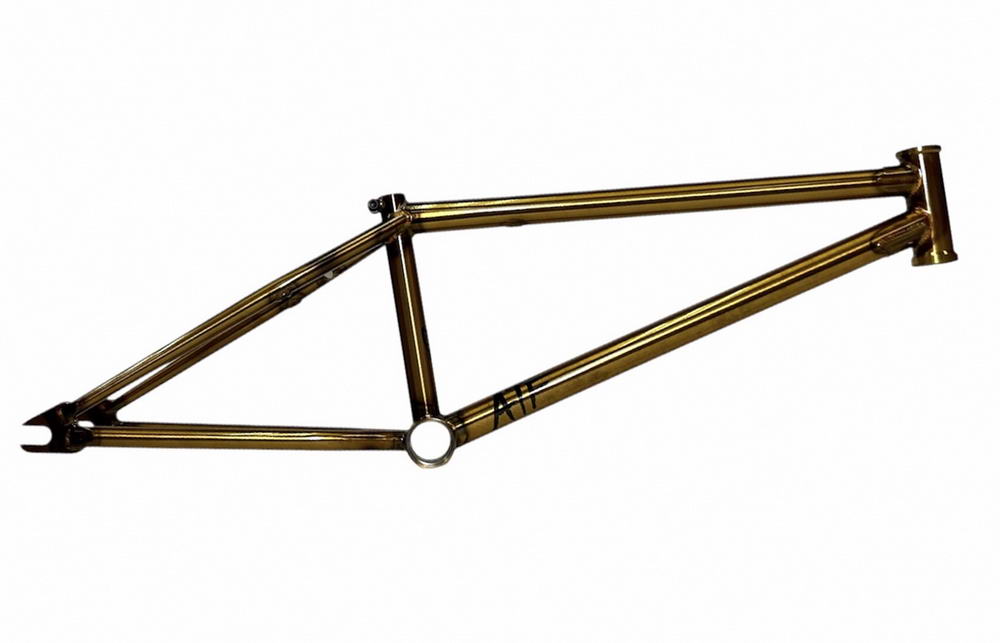

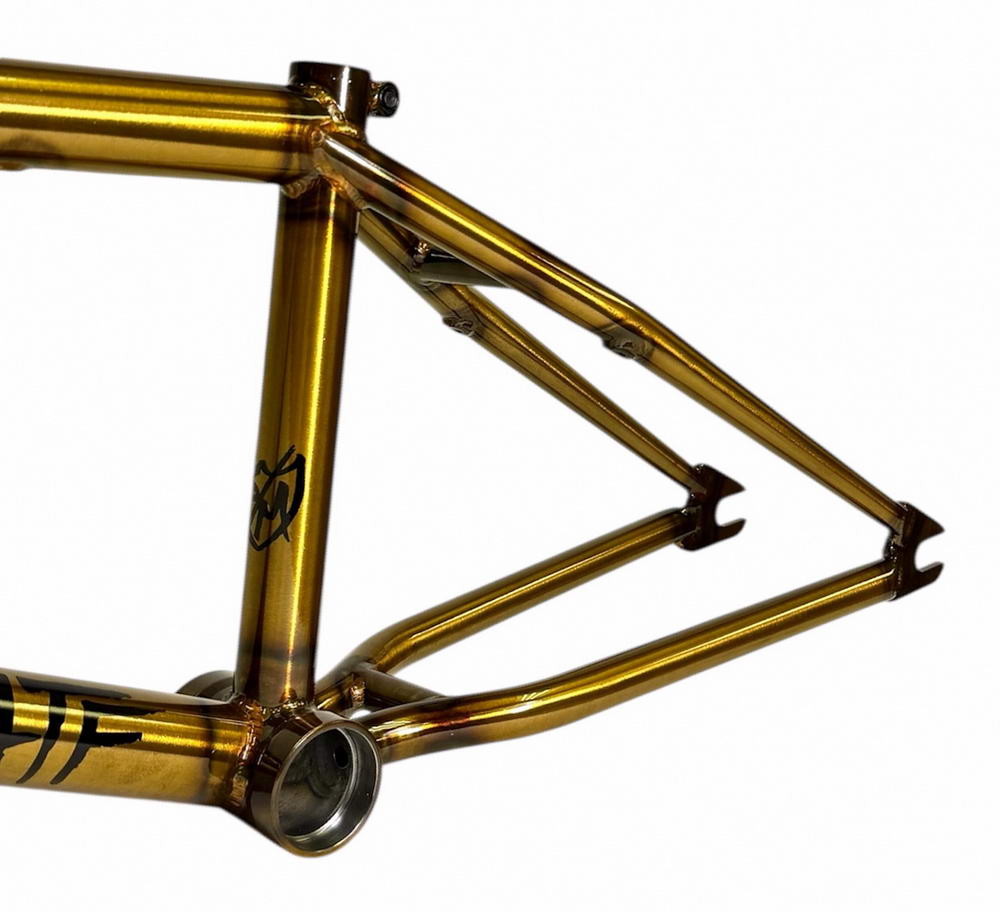

Frame S&M ATF

Frame S&M ATF

Product No.:: 113702
Shipping time:: (abroad may vary)
Stock:: - pieces

color:

top tube length:

UVP from 749,95 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

This is the base model most of our pro signature frames have started from for awhile now. It’s also the basic custom frame most of the employees here ride. It’s a little stronger and heavier than some of the frames on the market but it’s what people that really ride want. Stylish, classic, and burly all rolled up into one.

Made in USA
Top Tube Lengths: 20", 20.5", 20.75", 21", 21.25", 21.5", 22"
Rear End Length: 13.4"- 13.875"
Head Tube Angle: 75°

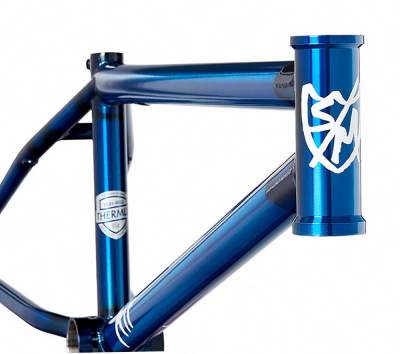

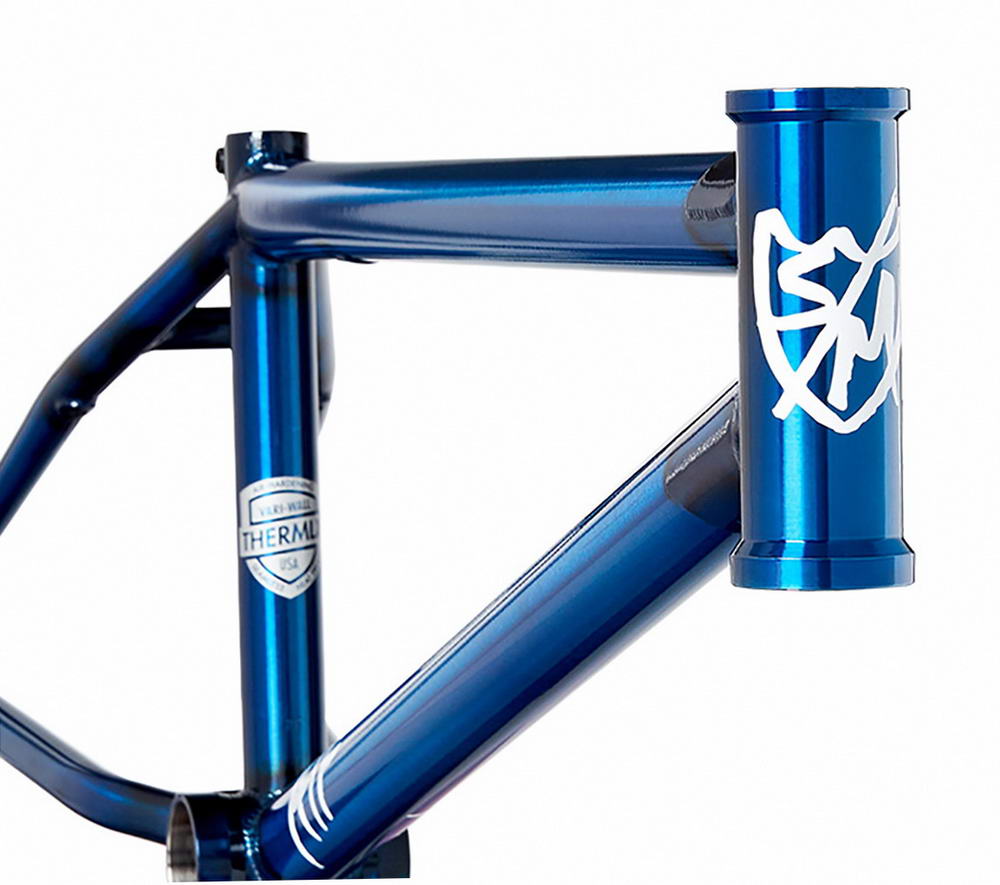

Head Tube Style: Integrated (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Integrated
Seat Post Size: 1" (25.4mm)
BB Height: 11.7"
BB Style: Mid w/EZ-out punch slots
Standover Height: 8.5"
Brake Mounts: Thread-On 990 Mounts (not included, sold separately)

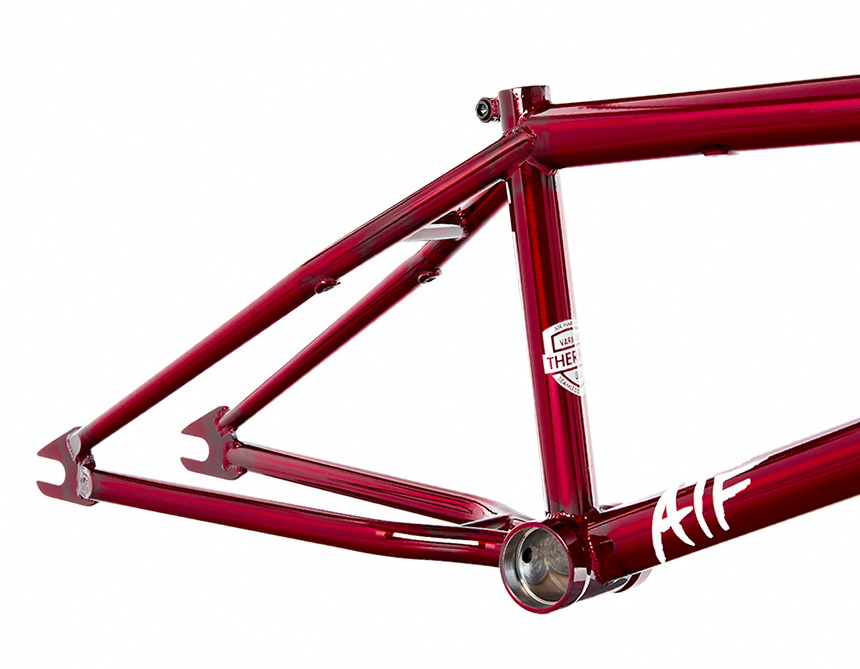

Dropouts: 14mm Slot, 4Q-Baked, Built in Tensioner
Gyro Tabs: None
Weight: 2.12 kg
Tube Set: Butted True Temper Super Therm Tubing
