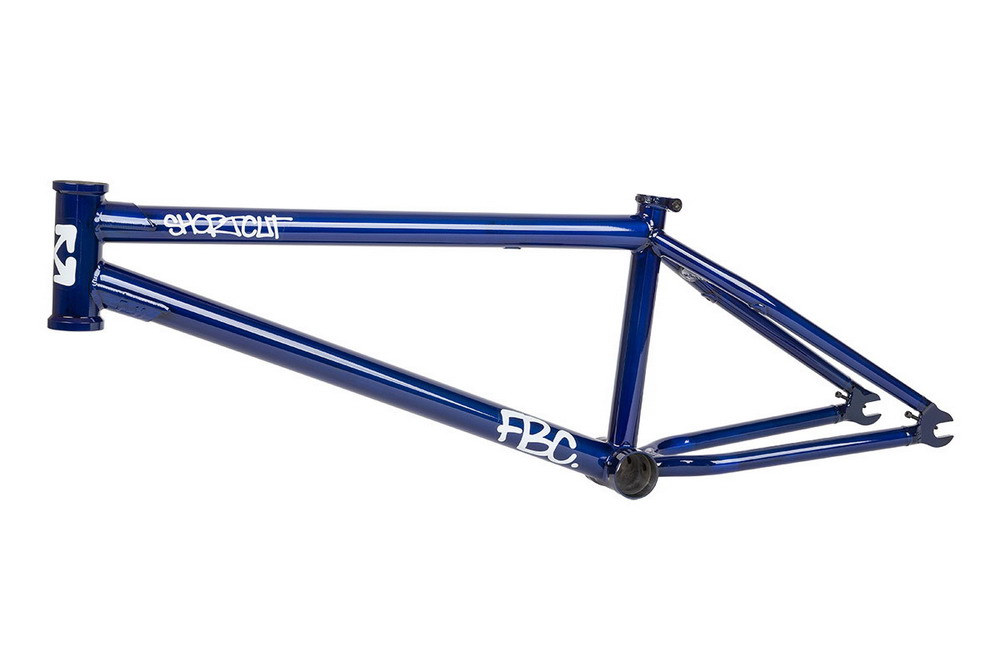

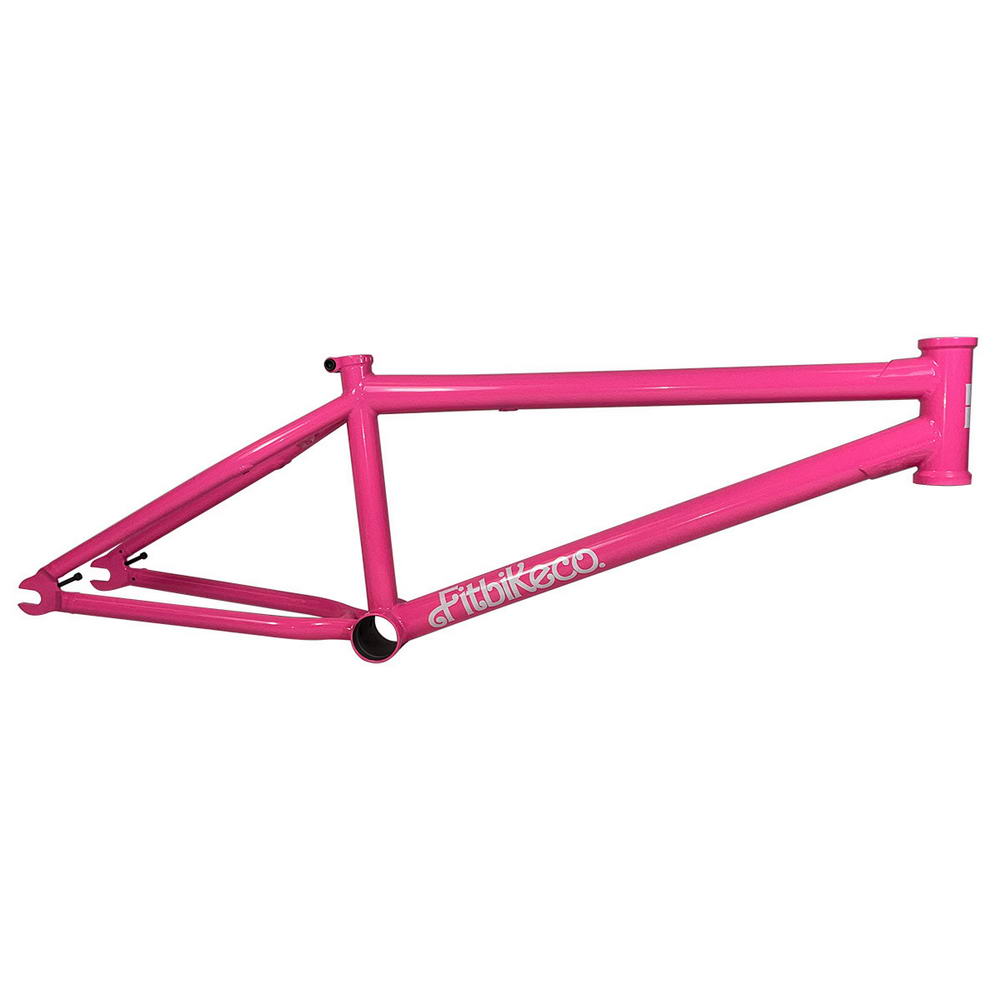

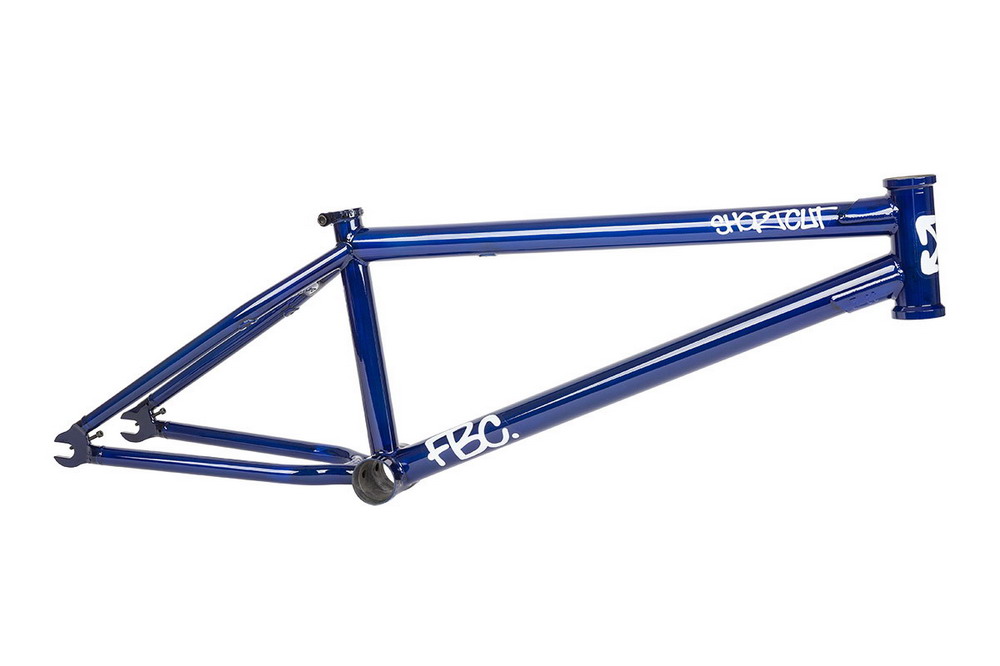

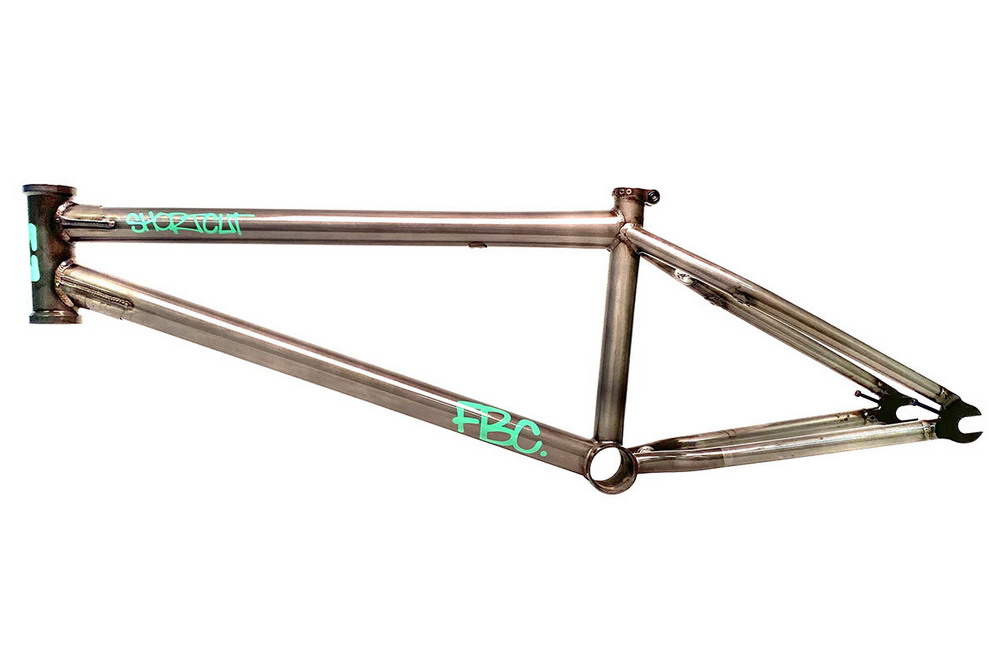

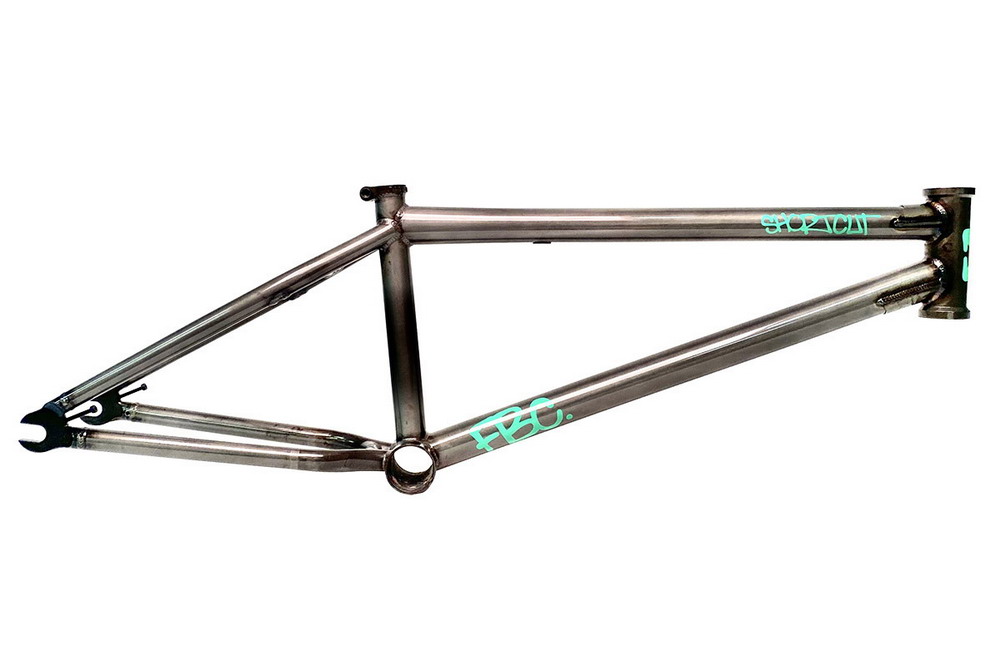

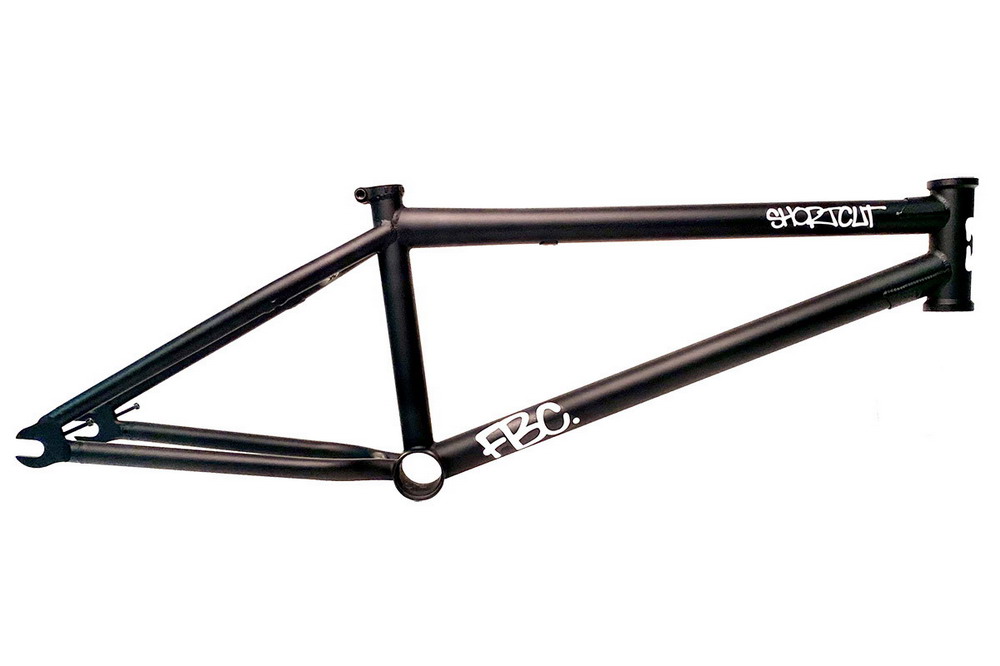

Frame Fit Shortcut V2

Frame Fit Shortcut V2

Product No.:: 115735
Shipping time:: on request (abroad may vary)

UVP 489,95 EUR
489,95 EUR per Stk.

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

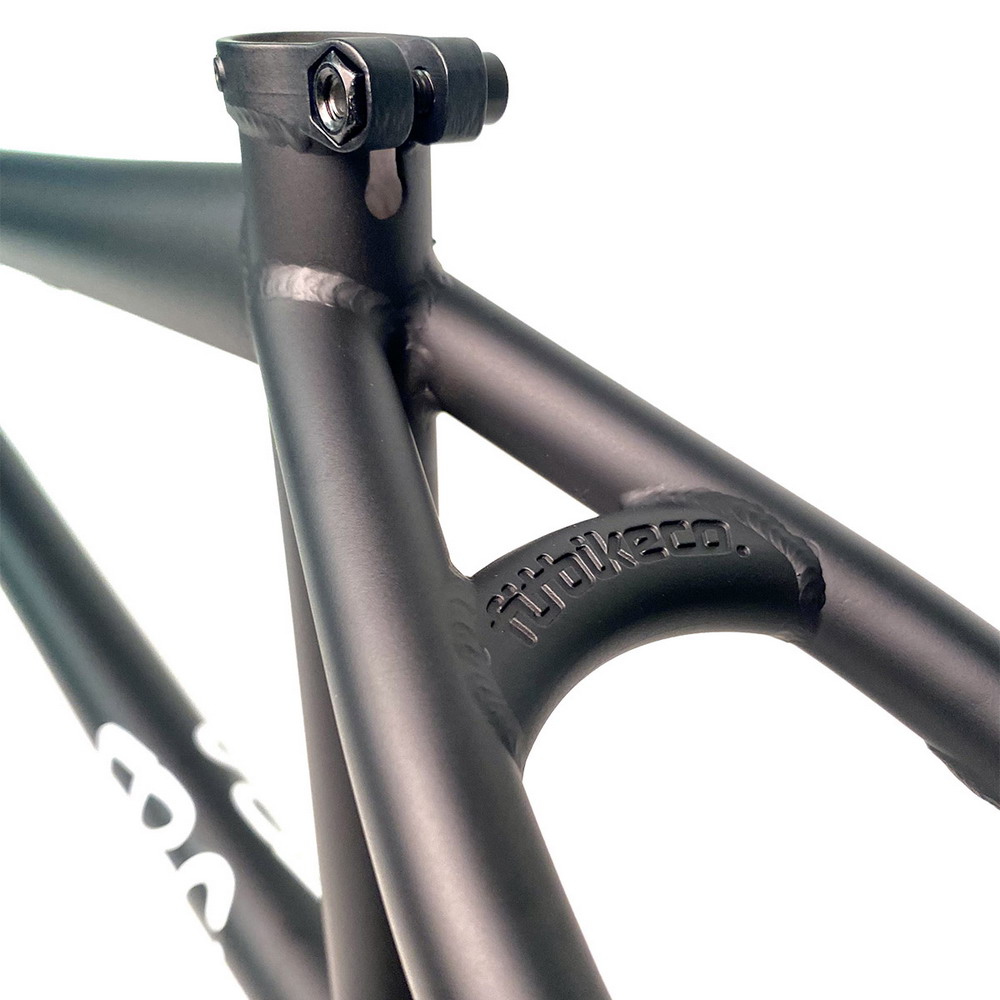

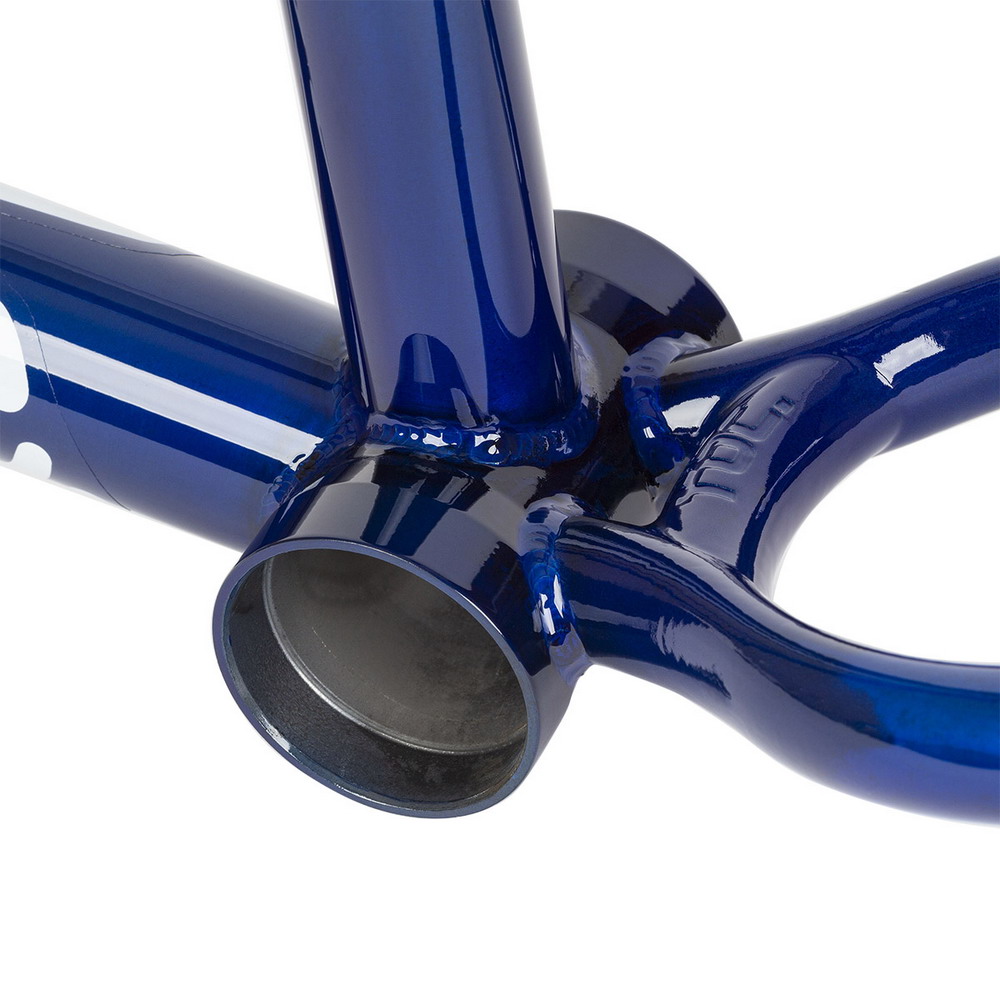

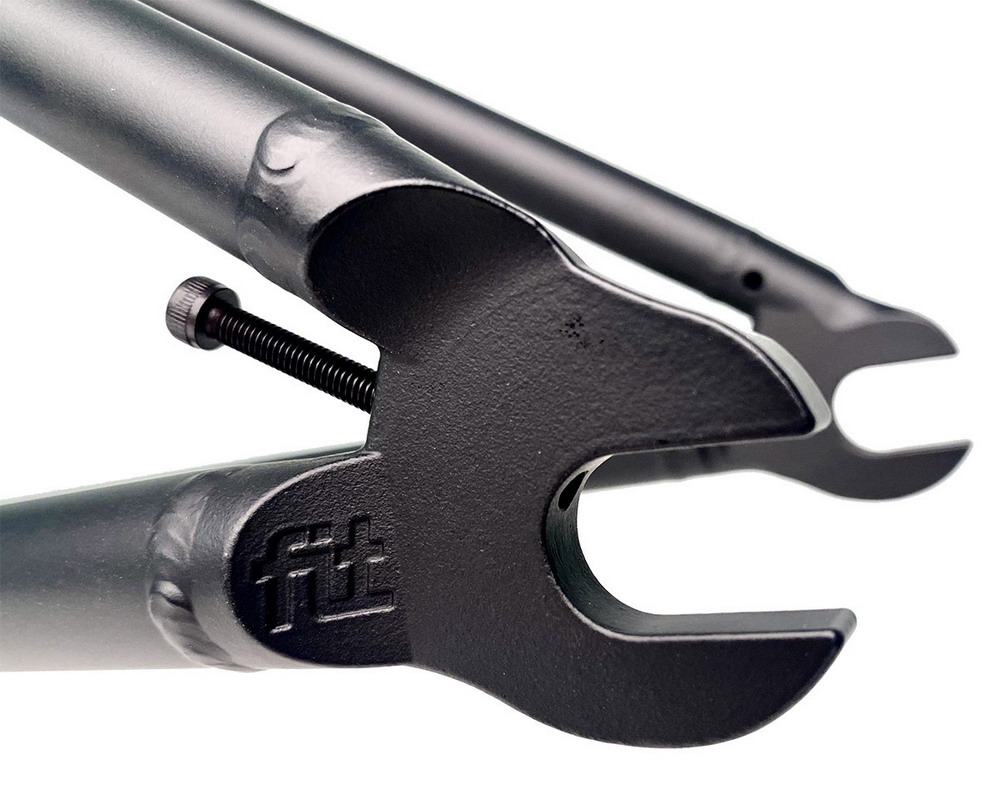

The SHORTCUT V2 frame features the shortest chainstay in BMX coming in at 12.4". Designed with an investment cast chainstay yoke, we were able to shorten the rear-end while retaining maximum tire clearance. While the SHORTCUT is one of the most responsive frames on the market, it is also one of the most reliable. Investment cast dropouts with integrated chain tensioners are designed for heavy peg use without weld failures or wheel movement. The SHORTCUT V2 now comes in shorter top tube lengths and features a lower standover height. The SHORTCUT V2 is ideal for tech riders, anyone that wants to make learning new tricks a little easier, and riders looking for a slightly smaller and nimbler frame.

Specs
Top Tube Length: 19.5", 20", 20.25"
Rear End Length: 12.4"
Head Tube Angle: 75.5°

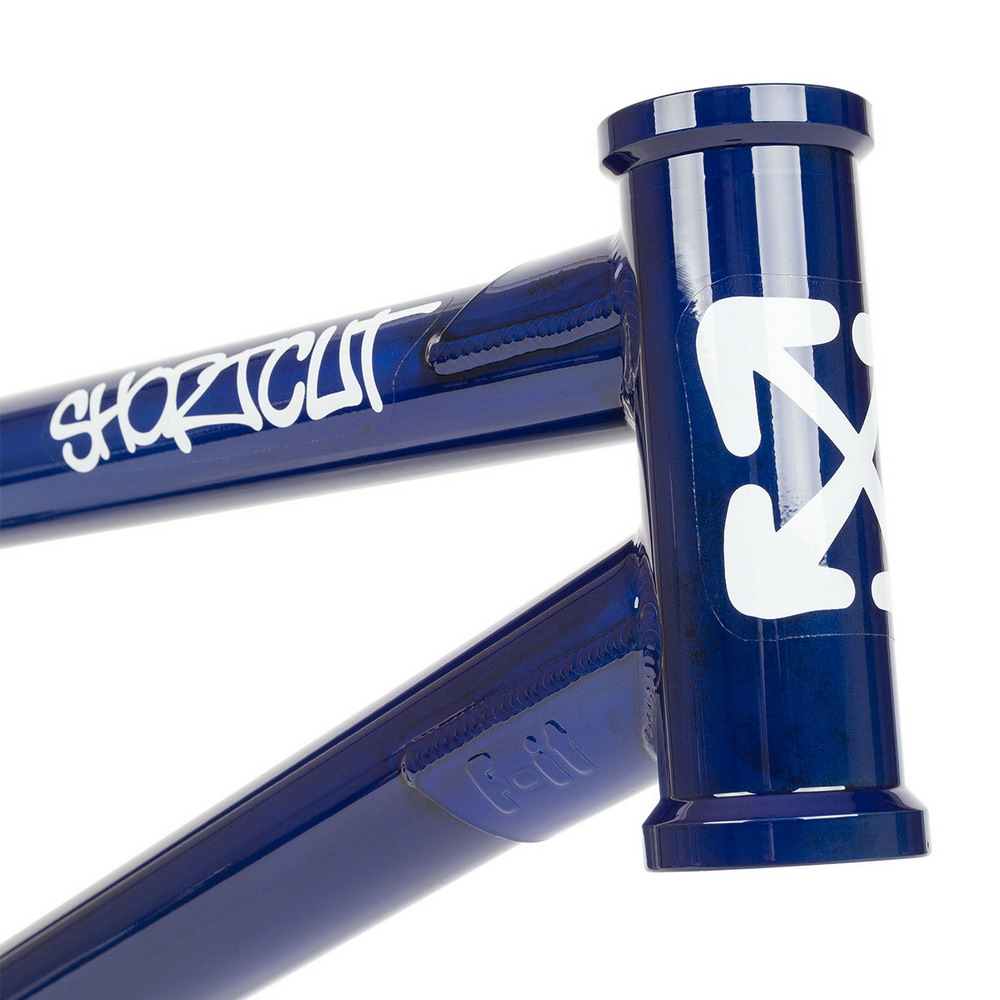

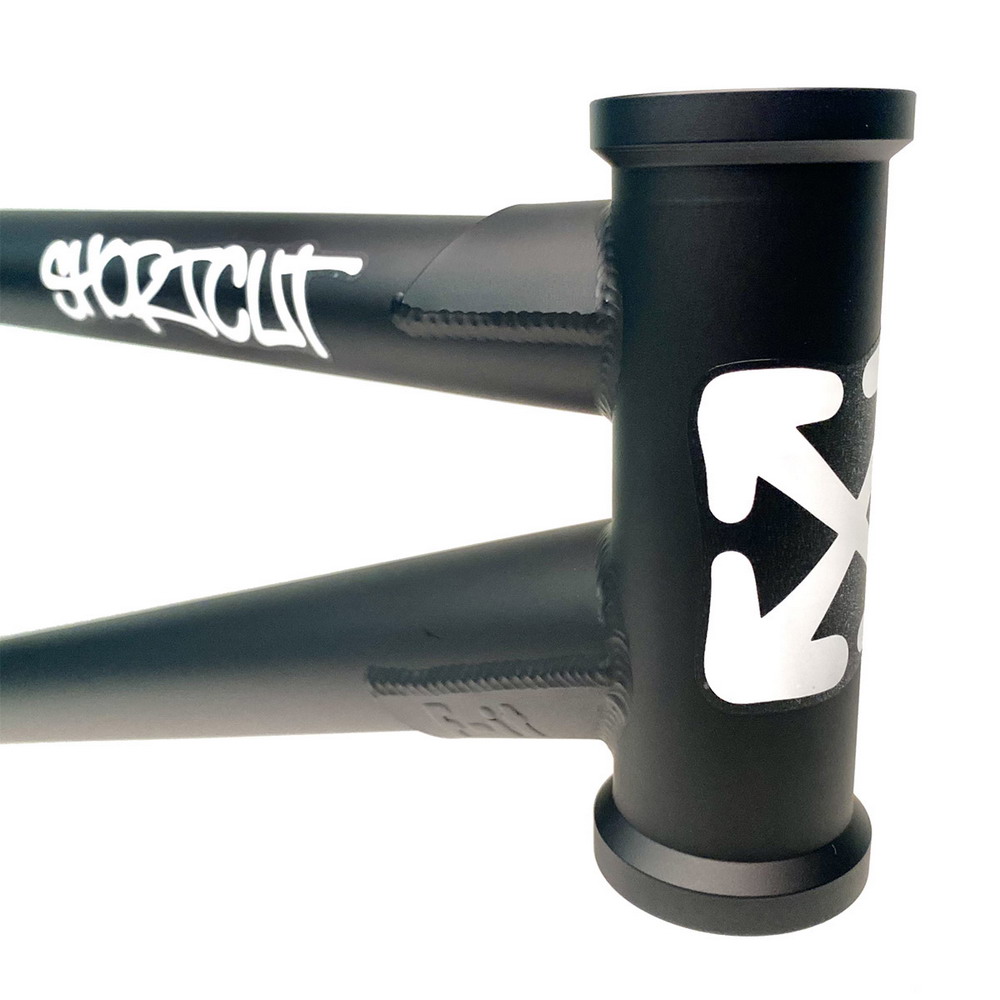

Head Tube Style: Integrated (45°/45°, 41.8 mm)
Seat Tube Angle: 71°

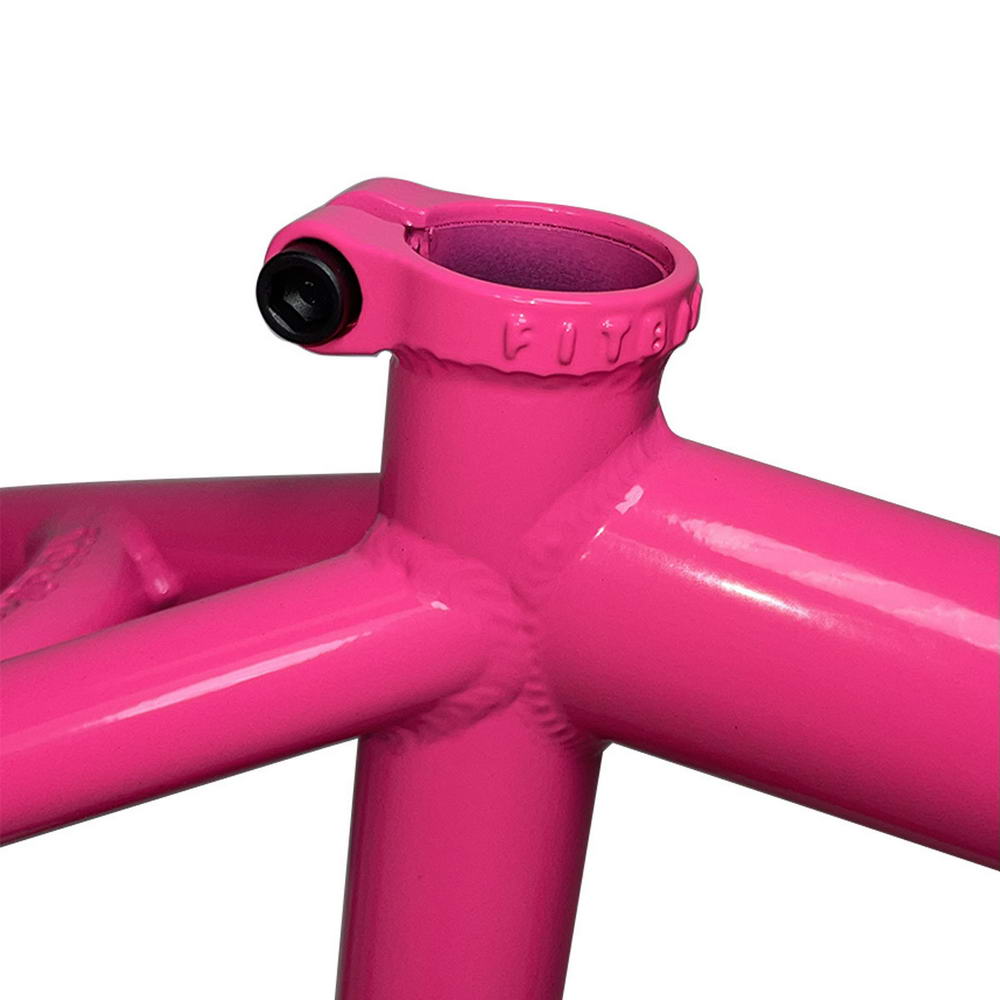

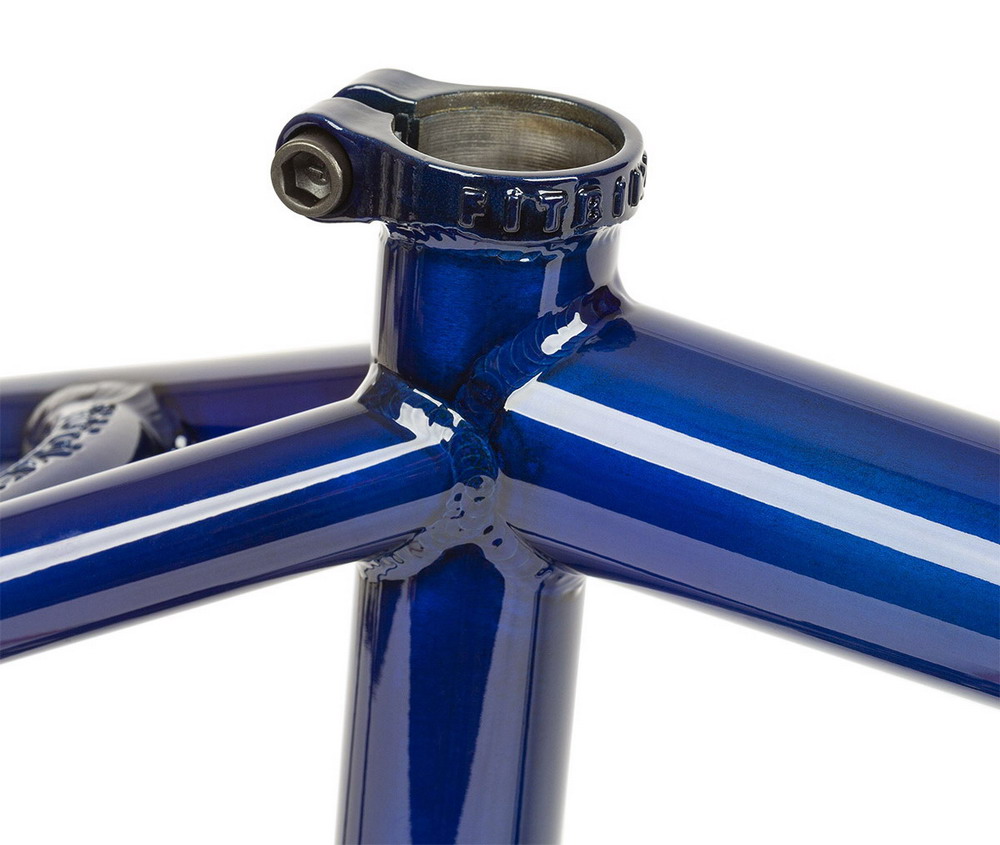

Seat Clamp: Integrated
Seat Post Size: 25.4 mm
BB Height: 11.7"

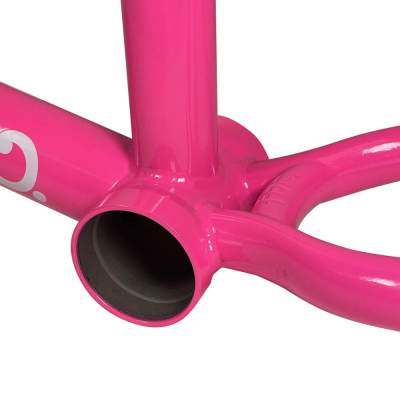

BB Style: Mid
Standover Height: 8.75"
Brake Mounts: Thread-On (not incl.)
Dropouts: 14 mm, 4Q-Baked
Gyro Tabs: None
Weight: 2.27 kg
Tube Set: Butted Thermal X Chromoly
